DEVSG Series Industrial Gas Burner Safety Valve 200mbar IP54 Protection High Temperature Shutoff OEM Customizable
- Overview
- Recommended Products
DEVSG Series Industrial Gas Burner Safety Valve 200mbar IP54 Protection High Temperature Shutoff OEM Customizable

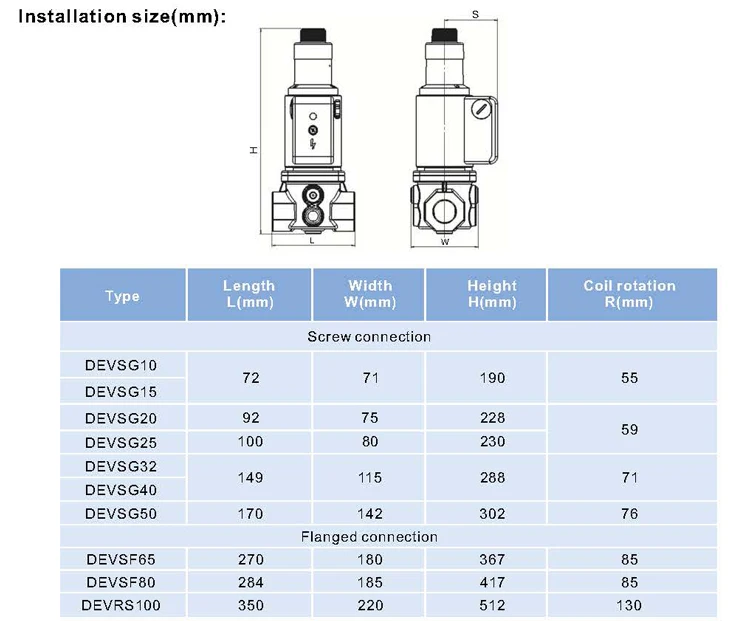

Mode |
Connection
dimension
|
Maximum Pressure
mbar
|
230Vac power
W
|
Screw connection | |||
DEVSG10 |
RP3/8" |
360 |
15 |
DEVSG15 |
RP1/2" |
360 |
15 |
DEVSG20 |
RP3/4" |
360 |
25 |
DEVSG25 |
RP1" |
360 |
25 |
DEVSG32 |
RP1 1/4" |
200 |
45 |
DEVSG40 |
RP1 1/2" |
200 |
45 |
DEVSG50 |
RP2" |
200 |
50 |
Flanged connection | |||
DEVSF65 |
DN60 |
200 |
80 |
DEVSF80 |
DN80 |
200 |
80 |
DEVSF100 |
DN100 |
200 |
110 |

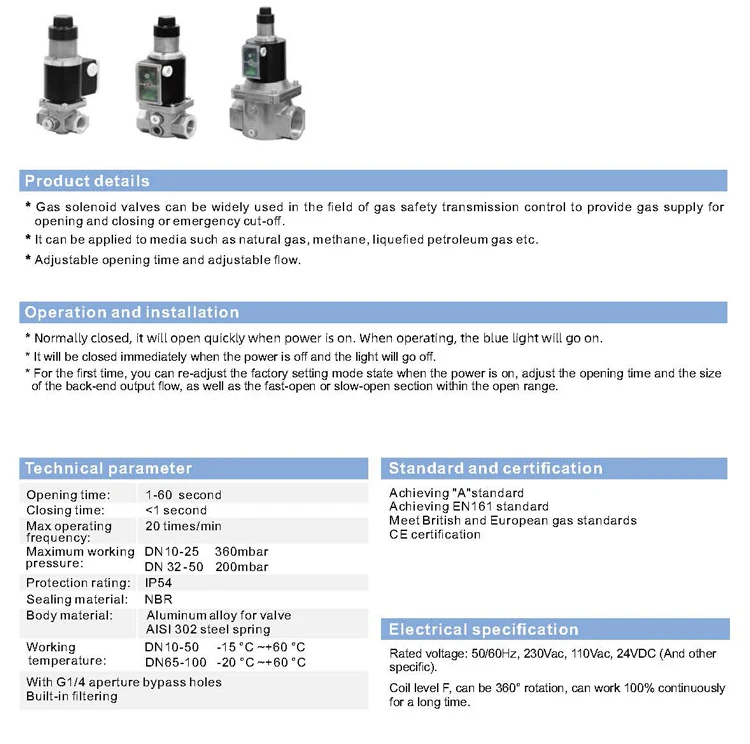

The DEVSG type valve is a Slow opening solenoid valve that is normally closed. When it’s not energized, the spring works on the disc keeping the passage closed; while it’s energized, the valveopens -15 to 60℃,two way, normally closed, Ip54
Max Pressure:DN10-25:360mbar;
DN32-100:200mbar
