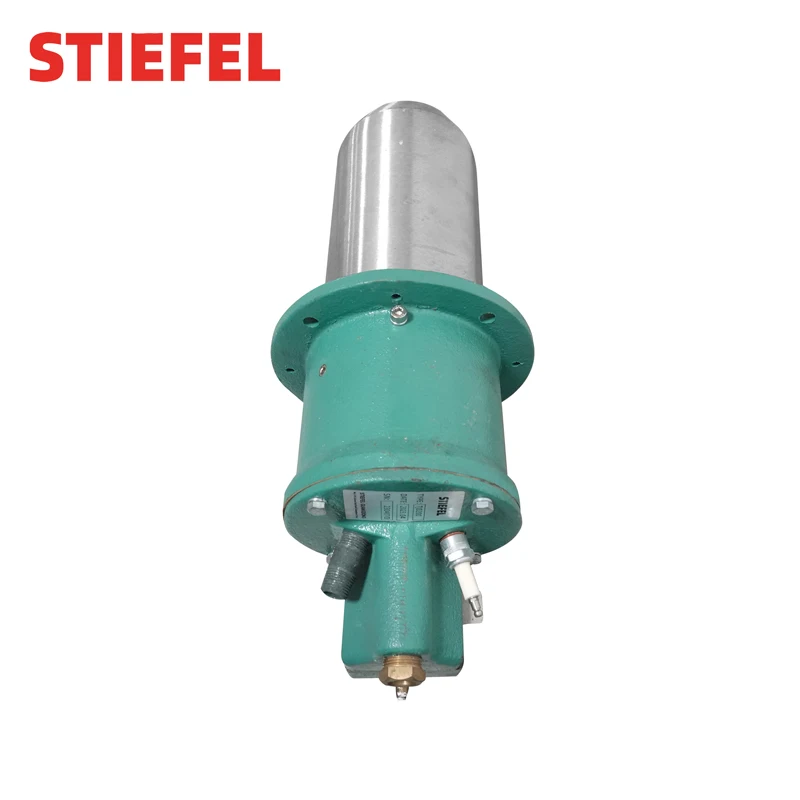

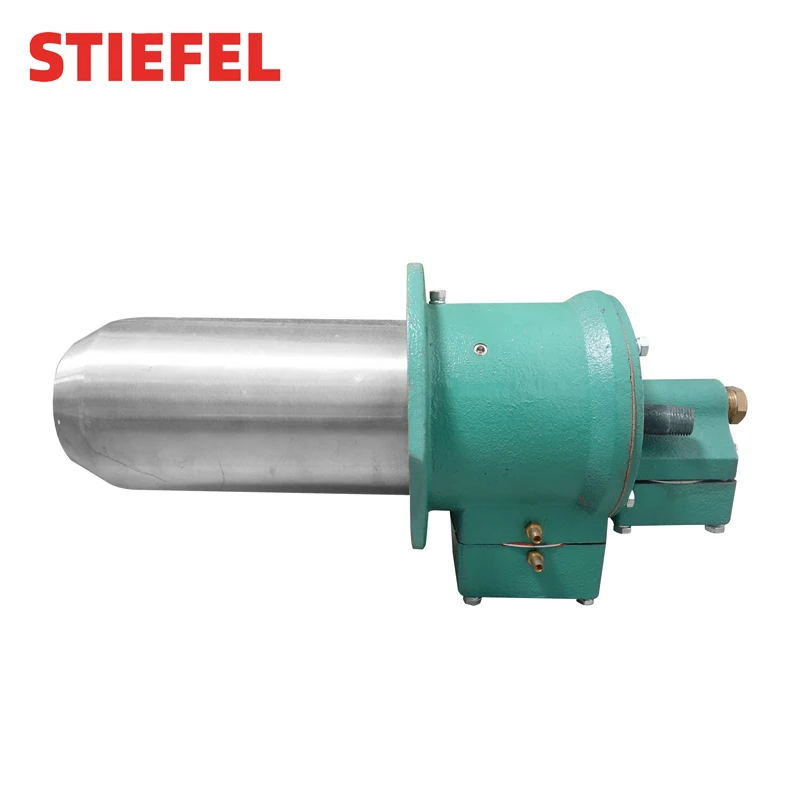

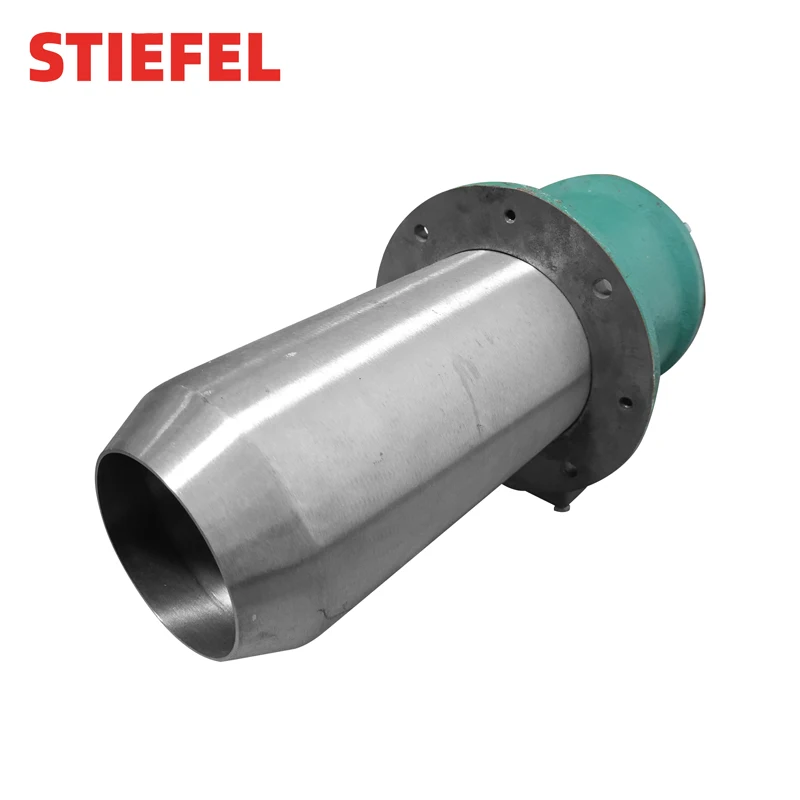

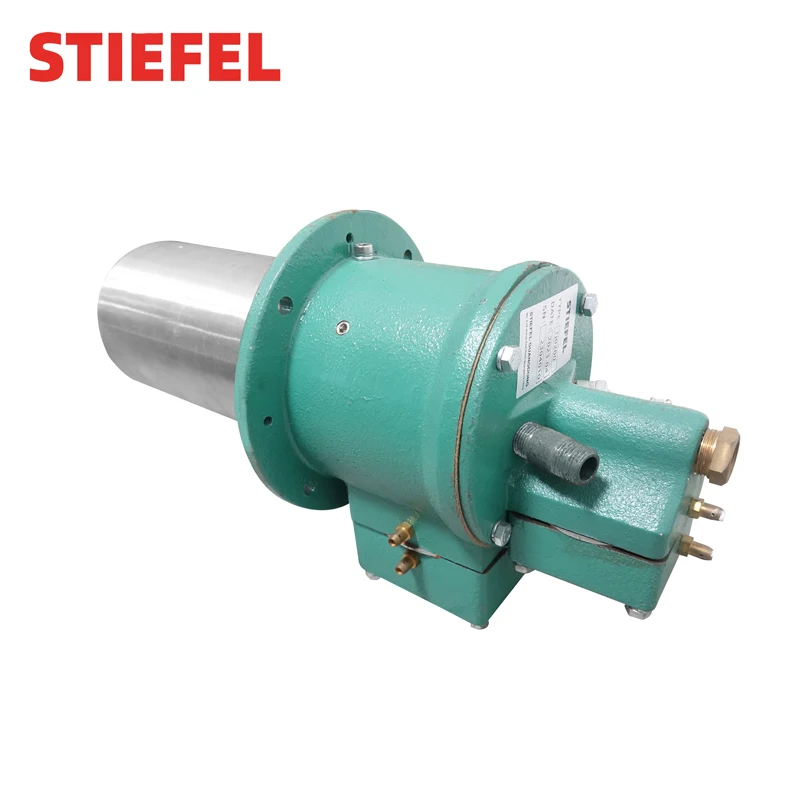

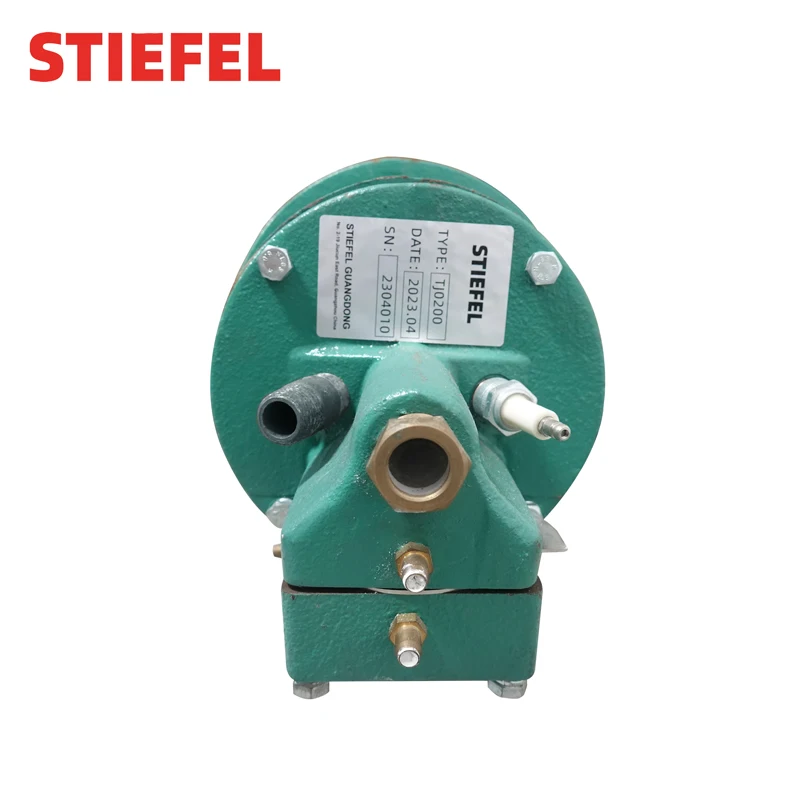

TJ0150 440kW High Velocity Burner Nozzle Gas Jet Burners for Industrial Furnaces.
Parameter |
Burner Velocity |
Model TJ0150 |
Model TJ0200 |
|
Max input, Btu/hr (KW) |
Medium / High velocity |
1,500,000(400) | 2,000,000(586) | |
Min input, Ratio regulated Btu/hr (KW) |
Medium / High velocity | 150,000(44) | 200,000(59) | |
Min input, Fixed air Btu/hr (KW) |
Medium / High velocity | 30,000(9) | 40,000(12) | |
|
Main Gas Inlet Pressure, "w.c. (mbar) Fuel pressure at gas inlet |
High velocity | Natural gas | 14.5(36.0) | 9.3(23.0) |
Propane |
15.0(38.0) | 12.7(32.0) | ||
Butane |
15.5(39.0) | 13.4(34.0) | ||
| Medium velocity | Natural gas | 7.0(17.5) | 7.1(18.0) | |
| Propane | 6.0(15.0) | 8.5(21.0) | ||
| Butane | 6.5(16.0) | 6.9(17.0) | ||
|
Air Inlet Pressure, "w.c. (mbar) 15% excess air at maximum input |
High velocity | Natural gas | 17.5(44.0) | 12.3(31.0) |
| Propane | 19.5(49.0) | 14.1(35.0) | ||
| Butane | 19.5(49.0) | 14.1(35.0) | ||
| Medium velocity | Natural gas | 9.5(24.0) | 10.0(25.0) | |
| Propane | 10.0(25.0) | 11.0(28.0) | ||
| Butane | 10.5(26.0) | 11.0(28.0) | ||
|
High Fire Visible Flame Length, inches (mm) Measured from the outlet end of the combustor |
High velocity | Natural gas | 38(965) | 27(685) |
| Propane | 42(1065) | 30(760) | ||
| Butane | 43(1090) | 30(760) | ||
| Medium velocity | Natural gas | 43(1090) | 36(915) | |
| Propane | 42(1065) | 32(810) | ||
| Butane | 44(1120) | 32(810) | ||
|
Approximate Flame Velocity, ft/s (m/s) Approximately 15% excess air at maximum input |
High velocity | 500(152.4) | 500(152.4) | |
| Medium velocity | 250(76.2) | 250(76.2) | ||
| Flame Detection | UV scanners only (Can be used with all combustors) | |||
| Fuel |
Natural gas, propane, butane For any other mixed gas, contact our company. |
|||
• All information is based on laboratory testing in neutral (0 "w.c., 0 mbar) pressure chamber. Different chamber conditions may affect the data.
• All information is based on standard combustor design. Changes in combustor will alter performance and pressures.
• All inputs are calculated according to the high calorific value of the fuel.
• Our company reserves the right to change the construction and/or configuration of our products at any time without being obliged to adjust earlier supplies accordingly.
• Plumbing of air and gas will affect accuracy of orifice readings. All information is based on generally acceptable air and gas piping practices.
